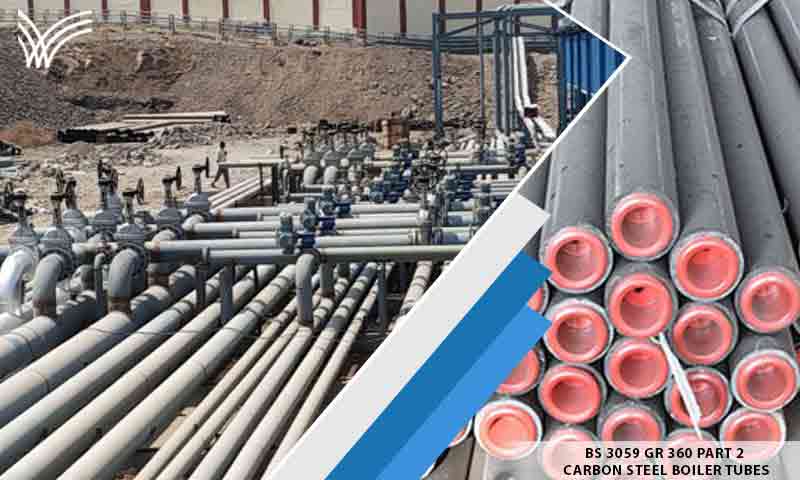

BS 3059 gr 360 Part 2 Tubes

BS 3059 gr 360 Part 2 Carbon Steel Boiler Tubes

BS 3059 gr 360 Part 2 Carbon Steel Boiler Tubes manufacturers and distributors in India

The BS 3059 gr 360 Part 2 Carbon Steel Boiler Tubes are mostly recommended for transporting gas and fuel. It can sustain a high-pressure environment and provides enhanced corrosion resistance in moderately corrosive environments.

We are one of the top manufacturers of BS 3059 Carbon Steel Tubes in India. We offer full customization of the products according to the specific requirements given by our clients. For example, the outer diameter of the tubes can range between 5-90mm, and the wall thickness can vary between 0.5-15mm, which also depends on the diameter. We offer these carbon steel boiler tubes in various sizes, from ½” NB to 36” NB, and they have varied applications in different industries.

The BS 3059 Pt 2 360 Economiser Tubes are popular across various industries due to their mechanical and physical properties. They come with high stress to rupture strength. Also, they possess a high creep strength even at high temperatures. These tubes are crafted by cold rolling or cold drawing. We offer different types of these boiler tubes like seamless, welded, ERW, and fabricated.

We produce high-quality BS 3059 Part 1 Grade 360 Heat Exchanger Tubes using the best quality raw material. We also use the latest technologies to ensure faster and swift deliveries. Our experienced team of professionals supervises the whole manufacturing process so that each tube comes out perfect and has dimensional accuracy.

We conduct various tests on all of our products to ensure their quality. They are manufactured following the set guidelines and national and international standards. Our Carbon Steel BS 3059-1 Steam Tube Boiler is packaged individually in a safe wooden box or palette to avoid transportational damage.

Table of Content

Seamless, welded and plain end BS 3059 Carbon Steel Tubes supplier in Mumbai

BS 3059 gr 360 Part 2 Carbon Steel Boiler Tubes Specification

Standards BS 3059 Part II
Steel Grade Gr.360
Outside Diameter 5-90 mm
Size 1/2” NB to 36” NB
Thickness 3-12mm
Wall Thickness  0.5-15 mm
Schedules SCH 160, SCH 40, SCH 80, SCH XXS, SCH XS, All Schedules
Origin US, European, Korean, Japanese, Russian, Indian
Craft Cold rolled and Cold drawn
Type ERW / Seamless / Welded / Fabricated
End Beveled End, Plain End, Treaded
Tolerance Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm
Specialized in Large Diameter
Additional Testing H2 SERVICE, NACE MR0175, NACE TM0284, HIC TEST, NACE TM0177,SSC TEST, IBR, etc.

BS 3059 Part 2 Grade 360 Tube Weight Chart

Size NPS Pipe O.D. Wall Thickness Pipe I.D. Weight per Foot Standard to XXHY Schedule
Pipe #		 Section Modulus Gallon Capacity Per Linear Foot
1/2 0.84 0.109 0.622 0.85 STD 40 .0407 .0158
    0.147 0.546 1.09 XHY 80 .0478 .0122
    0.188 0.464 1.31   160 .0528 .0088
    0.294 0.252 1.72 XXHY   .0577 .0026
3/4 1.05 0.113 0.824 1.13 STD 40 .0705 .0277
    0.154 0.742 1.48 XHY 80 .0853 .0225
    0.219 0.612 1.95   160 .1006 .0153
    0.308 0.434 2.44 XXHY   .1103 .0077
1 1.315 0.133 1.049 1.68 STD 40 .1328 .0449
    0.179 0.957 2.17 XHY 80 .1606 .0374
    0.250 0.815 2.85   160 .1904 .0271
    0.358 0.599 3.66 XXHY   .2136 .0146
1 1/4 1.66 0.140 1.380 2.27 STD 40 .2346 .0777
    0.191 1.278 3.00 XHY 80 .2913 .0666
    0.250 1.160 3.77   160 .3421 .0549
    0.382 0.896 5.22     .4110 .0328
1 1/2 1.90 0.145 1.610 2.72 STD 40 .3262 .1058
    0.200 1.500 3.63 XHY 80 .4118 .0918
    0.281 1.338 4.86   160 .5079 .0730
    0.400 1.100 6.41     .5977 .0494
2 2.375 0.109 2.157 2.64   10 .4205 .1898
    0.154 2.067 3.66 STD 40 .5606 .1743
    0.218 1.939 5.03 XHY 80 .7309 .1534
    0.250 1.875 5.68     .8045 .1434
    0.281 1.813 6.29     .8666 .1344
    0.344 1.687 7.47   160 .9806 .1161
    0.436 1.503 9.04 XXHY   1.1043 .0922
2 1/2 2.875 0.120 2.635 3.53   10 .6870 .2833
    0.203 2.469 5.80 STD. 40 1.0640 .2487
    0.216 2.443 6.14     1.1169 .2435
    0.250 2.375 7.02     1.2468 .2301
    0.276 2.323 7.67 XHY 80 1.3386 .2202
    0.375 2.125 10.02   160 1.6371 .1842
    0.552 1.771 13.71 XXXHY   1.9971 .1280
3 3.50 0.120 3.260 4.34     1.0411 .4336
    0.156 3.188 5.58     1.3122 .4147
    0.172 3.156 6.12     1.4265 .4064
    0.188 3.124 6.66     1.5342 .3984
    0.216 3.068 7.58 STD. 40 1.7241 .3840
    0.250 3.000 8.69     1.9372 .3672
    0.281 2.938 9.67     2.1207 .3521
    0.300 2.900 10.26 XHY 80 2.2253 .3431
    0.438 2.624 14.34   160 2.8774 .2811
    0.600 2.300 18.6 XXHY   3.4243 .2158
3 1/2 4.0 0.120 3.760 4.98   10 1.3776 .5768
    0.226 3.548 9.12 STD. 140 2.3939 .5136
    0.250 3.500 10.02     2.6001 .4998
    0.281 3.438 11.17     2.8562 .4821
    0.318 3.364 12.52 XHY 80 3.1400 .4617
    0.636 2..728 22.87 XXHY   4.8795 .3085
4 4.5 0.120 4.260 5.62   10 1.7612 .7404
    0.156 4.188 7.24     2.2354 .7156
    0.188 4.124 8.67     2.6296 .6942
    0.203 4.094 9.32     2.8173 .6838
    0.219 4.062 10.02     3.0184 .6725
    0.237 4.026 10.80 STD. 40 3.2145 .6613
    0.250 4.000 11.36     3.3611 .6528
    0.281 3.938 12.67   60 3.7021 .6326
    0.312 3.876 13.97     4.0273 .6126
    0.337 3.826 15.00 XHY 80 4.2713 .5972
    0.438 3.624 19.02   120 5.1790 .5361
    0.531 3.438 22.53   160 5.8997 .4822
    0.674 3.152 27.57 XXHY   6.7927 .4054
5 5.563 0.188 5.187 10.80     4.1161 1.0979
    0.219 5.125 12.51     4.7279 1.0716
    0.258 5.047 14.63 STD. 40 5.4500 1.0391
    0.281 5.001 15.87     5.8644 1.0204
    0.312 4.939 17.51     6.4074 .99647
    0.344 4.875 19.19     6.9358 .9696
    0.375 4.813 20.80 XHY 80 7.4300 .9449
    0.500 4.563 27.06   120 9.2534 .8495
    0.625 4.313 32.99   160 10.7976 .7590
    0.750 4.063 38.59 XXHY   12.0954 .6734
6 6.625 0.109 6.407 7.59   5 3.5769 1.6748
    0.134 6.357 9.30   10 4.3475 1.6488
    0.156 6.313 10.79     5.0107 1.6260
    0.188 6.249 12.94     5.9351 1.5937
    0.203 6.219 13.94     6.3804 1.5780
    0.219 6.187 15.00     6.8261 1.5620
    0.250 6.125 17.04     7.6905 1.5306
    0.280 6.065 18.99 STD. 40 8.4958 1.5008
    0.312 6.001 21.06     9.3416 1.4688
    0.344 5.937 23.10     10.111 1.4391
    0.375 5.875 25.05     10.893 1.4082
    0.432 5.761 28.60 XHY 80 12.224 1.3541
    0.500 5.625 32.74     13.711 1.2909
    0.562 5.501 36.43   120 14.9806 1.2346
    0.625 5.375 40.09     16.1821 1.1787
    0.719 5.187 45.39   160 17.8243 1.0977
    0.864 4.897 53.21 XXHY   20.025 .9784
    1.000 4.625 60.13     21.7719 .8727
    1.125 4.375 66.14     23.1237 .7809

Pressure Rating of BS 3059 Boiler Tube

Maximum Allowable Pressure (psi)
NPS Outside Diameter Schedule
(in) (in) 10 20 30 STD 40 60 XS 80 100 120 140 160 XXS
1/4 0.54 7985 7985 10798 10798
3/8 0.675 6606 6606 9147 9147
1/2 0.84 6358 6358 8575 8575 10908 17150
3/4 1.05 5273 5273 7187 7187 10220 14373
1 1.315 4956 4956 6670 6670 9316 13340
1 1/4 1.66 4133 4133 5638 5638 7380 11276
1 1/2 1.9 3739 3739 5158 5158 7247 10316
2 2.375 3177 3177 4498 4498 7097 8995
2 1/2 2.875 3460 3460 4704 4704 6391 9408
3 3.5 3024 3024 4200 4200 6132 8400
3 1/2 4 2769 2769 3896 3896
4 4.5 2581 2581 3670 3670 4769 5782 7339
5 5.563 2273 2273 3303 3303 4404 5505 6606
6 6.625 2071 2071 3195 3195 4157 5318 6390
8 8.625 1420 1574 1829 1829 2307 2841 2841 3375 4085 4613 5147 4971
10 10.75 1140 1399 1664 1664 2279 2279 2708 3277 3847 4558 5128 4558
12 12.75 961 1268 1441 1560 2160 1922 2644 3244 3843 4324 5042 3843
14 14 875 1092 1313 1313 1533 2079 1750 2625 3283 3829 4375 4921
16 16 766 956 1148 1148 1531 2009 1531 2585 3157 3733 4404 4882
18 18 681 849 1192 1021 1530 2042 1361 2553 3147 3743 4252 4848
20 20 613 919 1225 919 1455 1989 1225 2526 3138 3675 4288 4824
22 22 557 835 1114 835 1949 1114 2506 3063 3619 4176 4733
24 24 510 766 1147 766 1405 1978 1021 2489 3126 3700 4210 4786
30 30 510 817 1021 613 817
32 32 478 766 957 574 1054
34 34 450 721 901 540 992
36 36 425 681 851 510 1021
42 42 583 729 438 875

BS 3059 Pt 2 360 Tubes Price List

Products Price
BS 3059 Gr. 360 Carbon Steel Boiler Tube $750 per Ton
BS3059 Boiler and Superheater Fin Tube $50 per Piece
BS 3059 Gr320 Boiler Heater Seamless Tube $35 per Piece
BS 3059-1 Carbon Steel Boiler and Superheater Tube $800 Per Ton
BS 3059-1 Cold Drawn Seamless Carbon Steel Boiler Tube $800 Per Ton

Chemical Composition of BS 3059 Part 1 Grade 360 Heat Exchanger Tubes

Carbon Silicon Manganese Phosphorous Sulphur Molybdenum Nickel Chromium Copper Others
max 0.16 0.10-0.35 0.30-0.70 0.04 0.04 – – – – –

BS 3059 Gr 360 Tube Mechanical Properties

Yield Strength Tensile Strength   Elongation A5 min
MPa min ksi min MPa min MPa min ksi min Percentage
    320 480 – 25

Equivalent of BS 3059 Carbon Steel Tubes

BS

BS3059

 ASTM/ASME ASTM/ASME A53
BS1387 ASTM/ASME A106
DIN DIN1629 ASTM/ASME A179
DIN2391 ASTM/ASME A192
DIN2448 ASTM/ASME A210
DIN17175 ASTM/ASME A213
DIN17456 ASTM/ASME A249
DIN17458 ASTM/ASME A269
JIS JIS G3444 ASTM/ASME A312
JIS G3445 ASTM/ASME A333
JIS G3456 ASTM/ASME A334
JIS G3459 ASTM/ASME A335
JIS G3461 ASTM/ASME A500
EN EN 10216-1 ASTM/ASME A519
EN 10216-2 ASTM/ASME A556

Check BS 3059 grade 360 equivalent and specification chart

Thickness Chart of Carbon Steel BS 3059-1 Steam Tube

BS 3059 Pipe Types Out diameter Wall thickness Length
BS 3059 Part 2 Grade 360 Boiler tube (Custom Sizes) 1/2" NB - 60" NB SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 Custom
CS BS 3059 Boiler Tubes (in Stock + Custom Sizes) 1/2" NB - 24" NB As per requirement Custom
BS 3059 Welded Pipe (Custom Sizes) 1/2" NB - 24" NB As per requirement Custom

BS 3059 gr 360 Part 2 Carbon Steel Boiler Tubes Types

BS 3059 Part 2 Water Tube Boiler

BS 3059 Part 2 Water Tube Boiler

BS 3059 Part 2 Grade 360 Fire Tube Boiler

BS 3059 Part 2 Grade 360 Fire Tube Boiler

BS 3059 Gr 360 Tube Boiler

BS 3059 Gr 360 Tube Boiler

BS 3059 Carbon Steel Tubes

BS 3059 Carbon Steel Tubes

BS 3059 Pt 2 360 Economiser Tubes

BS 3059 Pt 2 360 Economiser Tubes

BS 3059 Part 1 Grade 360 Heat Exchanger Tubes

BS 3059 Part 1 Grade 360 Heat Exchanger Tubes

BS 3059 Part 2 Grade 360 Water Tube Boiler

BS 3059 Part 2 Grade 360 Water Tube Boiler

BS 3059 Carbon Steel Fire Tube Boiler

BS 3059 Carbon Steel Fire Tube Boiler

BS 3059 Part 2 Heat Exchanger Tubes

BS 3059 Part 2 Heat Exchanger Tubes

BS 3059 Gr 360 Triangle Tube Boiler

BS 3059 Gr 360 Triangle Tube Boiler

BS 3059 Part 1 Grade 360 Tube Boiler

BS 3059 Part 1 Grade 360 Tube Boiler

BS 3059 Pt 2 360 Water Tube Steam Boiler

BS 3059 Pt 2 360 Water Tube Steam Boiler

BS 3059 Part 2 Grade 360 Steam Tube Boiler

BS 3059 Part 2 Grade 360 Steam Tube Boiler

BS 3059 Carbon Steel Seamless Boiler Tubes

BS 3059 Carbon Steel Seamless Boiler Tubes

BS 3059 Part 2 Economiser Tubes

BS 3059 Part 2 Economiser Tubes

BS 3059 Gr 360 Bent Boiler Tube

BS 3059 Gr 360 Bent Boiler Tube

BS 3059 Part 1 Grade 360 Superheater Tubes

BS 3059 Part 1 Grade 360 Superheater Tubes

BS 3059 grade 360 Tubing

BS 3059 grade 360 Tubing

Wall tolerance of BS 3059-2 Grade 360 Tubing

Execution Size Range OD Tolerance Wall tolerance
Hot-rolled Tube OD - 80 mmOD > 80 mmWall ± 0.4 mm± 0.5 % of OD ± 0.7 mm± (5 % x wallthickness + 0.1 mm
Hot-rolled peeled tube All sizesWall + 0.25/- 0 mm ± 0.8 mm± (5 % x wall thickness+ 0.2 mm)
Cold Worked tubecold-rolled or cold-drawn OD 80 Wall Thickness 8 + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* ± 0.30 mm± 0.35 mm± 0.40 mm

Straightness of BS 3059 Pt 2 360 Seamless Boiler Tubes

Max deviation from the straight line is 1 mm on a gauge length of 1000 mm.

Standard length tolerances of BS 3059 Carbon Steel Tubes

Component length (mm) OD 30-100 mm OD 100-254 mm
10-100 + 1.0/- 0 + 2.0/- 0
100-600 + 2.0/- 0 + 3.0/- 0
600-1200 + 3.0/- 0 + 4.0/- 0
1200-5000 + 5.0/- 0 + 6.0/- 0

Heat Treatment of BS 3059 grade 360 Tube

Delivery Condition Heat Treatment Temperature °c
Normalized 880-940

Material tests of BS 3059 Pt 2 360 Economiser Tubes

  • Macro test
  • Chemical analysis
  • Pitting corrosion test
  • PMI test
  • Radiography
  • Micro test
Exporter & supplier of British standard BS 3059 Pt 2 360 Economiser Tubes and Water Tube Boiler in Asia

BS 3059 PT 1 GR. 320 Seamless Tube Size Range

Carbon Steel BS 3059 ERW Pipes BS 3059 1/2″ - 24″
Carbon Steel BS 3059 Black & Galvanized Pipes BS 3059 1/2″ - 16″

BS 3059 grade 360 Tube Applications

  • Petrochemical
  • Gas transmission
  • Pulp and paper
  • Heating and Air Conditioning
  • Chemical & Electric Power

BS 3059 Boiler Tube Destructive tests

  • Mechanical properties testing
  • Pressure test
  • Tensile test
  • Hardness test
  • Compression test
View Carbon Steel BS 3059-1 Steam Tube Boiler and U Tube Type Heat Exchanger weight chart and price list

Strength Tests of BS 3059 Part 1 Gr. 320 Tubing

  • Leakage test
  • Tensile test
  • Hardness test
  • Compression test
  • Thermal property analysis
  • Mechanical test
