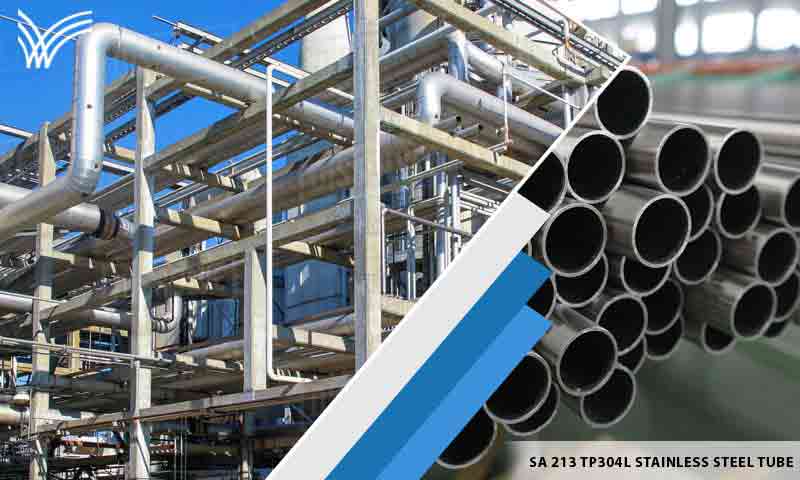

SA 213 TP304L Stainless Steel Tube

SA 213 TP304L Stainless Steel Tube

SA 213 TP304L Stainless Steel Tube suppliers and exporters in India

The SA 213 TP304L Stainless Steel Tube product specifications cover tubular seamless and stainless tubes. The products are made in a seamless process, and they are widely used for high-temperature applications. The 304L Stainless Steel Tubing solutions consist of carbon in lower quantities along with other elements such as chromium, silicon, nickel, manganese, etc., in their composition. There are some other materials present in trace amounts in the Welded Tubes 1.4306 as well. The Stainless Steel 304L Heat Exchanger Tubes are also quite stronger and offer good corrosion resistance. They also come with a very little absolute roughness and hence can easily be installed.

The Stainless Steel 304L Boiler Tubes also come with high heat resistance, making them ideal for heat exchangers, pressure vessels, and boilers. The Stainless Steel 304L Fin Tube also gives extra strength. These are available in different shapes to suit the purposes of various industries. We can fully customize the 304L Stainless Steel Hydraulic Tubing solutions according to the requirements. The customizations are specifically done in terms of sizes, dimensions and shapes of the pipes.. We are one of the biggest manufacturers of SS 304L Tube in India, who manufacture products with precision. Our high-quality 304l stainless steel tube is electric resistant and available at affordable prices.

The SS 304L Seamless Tube comes with easy weldability and has less intergranular corrosion. This means that the Stainless Steel 304L Tubing solutions are resistant to localized corrosion. We also offer different surface treatments to the SS 304L Tubing to protect it from rust and other conditions. We have a quality team that performs several tests on the 16 Gauge 304L Stainless Steel Pipe to ensure quality and safety. The products are sent to third parties for analysis.

Stainless Steel 304L Heat Exchanger Tubes and ASME SA 213 TP 304L Hydraulic Tubing stockist in Mumbai, check schedules, dimensions and online price of DIN 1.4306 Pipe and Tube

Stainless Steel 304L Tube

Stainless Steel 304L Tube

304L Stainless Steel Boiler Tube

304L Stainless Steel Boiler Tube

SS 304L Seamless Tube

SS 304L Seamless Tube

304L SS Rifled Tubes

304L SS Rifled Tubes

ASTM A213 TP304L Boiler Superheater Tube

ASTM A213 TP304L Boiler Superheater Tube

ASTM A213 Gr TP304L Heat Exchanger Tubes

ASTM A213 Gr TP304L Heat Exchanger Tubes

Specification List of ASME SA 213 TP 304L Boiler Tube

ASTM Specification ASME SA 213 / ASTM A213
Standard ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB
ASME SA 213 TP 304L Boiler Tube Size 4 to 219mm W. T.: 0.5 to 20mm
ASTM A213 TP 304L Boiler Tubing Size 5.0 - 1219.2 mm
SA 213 TP 304L Stainless Steel EFW Boiler Tubes size 5.0 - 1219.2 mm
Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
A213 Stainless Steel 304L Boiler Tubing Schedule SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
ASME SA 213 TP 304L Boiler Tubes Length Provided By Supplier Single Random, Double Random, Standard & Cut length
Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc
Form ASME SA 213 TP 304L Boiler Tubes are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Boiler Tubes, “U” Shape, Pan Cake Coils etc.
Type of SS 304L Boiler Tube Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW ASME SA 213 TP 304L Boiler Tubes
ASME SA 213 TP 304L Boiler Tubes End Plain End, Beveled End, Threaded, Screwed ends
Marking on ASTM A213 304L Boiler Tubing All ASME SA 213 TP 304L Boiler Tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Application of ASME SA 213 TP 304L Boiler Tube sugar mill, chemical industry, paper mill,textile factory, central heating enterprise, power plant
Value Added Service By Supplier Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Specialize Supplier in Large Diameter ASME SA 213 TP 304L Boiler Tubes
ASME SA 213 TP 304L Boiler Tubes manufacturing Technique Cold drawn, hot drawn, bright annealed, solid solution, hot extruding
Our stockyard Ahmedabad, Agra, Dhanbad, Tirunelveli, Bengaluru, Chennai, Mumbai, Hyderabad, Bhubaneswar, Noida, Pimpri-Chinchwad, Shivamogga, Coimbatore, Thiruvananthapuram, Tiruchirappalli, Pune, Navi Mumbai
ASME SA 213 TP 304L Boiler Tube Test Certificate Manufacturer Test Certificate
Laboratory Test Certificate from Govt. Approved Lab.
Under Third Party Inspection
Material Test Certificates (MTC) Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Charts, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, ASME SA 213 TP 304L Boiler Tube HS Code Commercial Invoice, Form A for Generalized System of Preferences (GSP)
Supplier of ASME SA 213 TP 304L Boiler Tube
  • Kobe Special Tube, Japan
  • Sumitomo Metals, Japan
  • Nippon Steel Corporation, Japan
  • Sanyo Special Steel, Japan
  • Tubacex Tubos Inoxidables S.A., Spain
  • Schoeller Bleckmann, Austria
  • Seah Steel Corporation, Korea
We can also cut, thread, and groove ASTM A213 TP 304L Boiler Tube to meet your specifications. ASME SA 213 TP 304L Boiler Tube Dimension ANSI/ ASME B36.10, B36.19, B2.1

What is ASTM A213 TP304L Boiler Tube?

The ASTM specified austenitic stainless steel grade sa 213 tp 304l Boiler Tube is considered to be one of the most versatile engineering materials across the different metals. This low carbon modified A213 TP 304L Stainless Steel Jacketed Tube Heat Exchanger offers good resistance against intergranular corrosion.

SA 213 TP304L Boiler Tube Price List

Price of ASME SA 213 TP 304L Boiler Tube manufacturer in India ASME SA 213 TP 304L Boiler Tubing Price in India (INR) ASME SA 213 TP 304L Boiler Tube Price in USD ASTM A213 TP 304L Boiler Tubing Price in UAE Dirham
TP304L seamless stainless steel pipes INR 178086.25 - 292061.45 US $2500-4100 9182.45 - 15059.22 UAE Dirham
tp304l stainless steel seamless pipe INR 213703.50 - 427407.00 US $3000-6000 11018.94 - 22037.88 UAE Dirham
ASTM A312 TP304l cold drawn seamless stainless pipe INR 2849.38 - 8548.14 US $40-120 146.92 - 440.76 UAE Dirham
ASME SA213 TP 304L Stainless Steel Seamless Pipe INR 35617.25 - 142469.00 US $500-2000 1836.49 - 7345.96 UAE Dirham

Please note This is an approximate Cost of ASME SA 213 TP 304L Boiler Tube in India. Please feel free to contact us for Free Quote and latest ASME SA 213 TP 304L ERW Boiler Tubes price list in India. Also compare our price with other ASME SA 213 304L Welded Boiler Tubes suppliers in India & China.

A213 Gr TP304L Stainless Steel Seamless Boiler Tubes Pressure Rating

AVE. WALL INCHES MIN YIELD STRENGTH (PSI) MIN TENSILE STRENGTH (PSI) THEORETICAL BURST PRESSURE * (PSI) WORKING PRESSURE (PSI) 25% OF BURST THEORETICAL YIELD POINT ** (PSI) COLLAPSE PRESSURE *** (PSI)
0.250 0.020 30,000 75,000 14,286 3,571 5,714 4,416
0.250 0.028 30,000 75,000 21,649 5,412 8,660 5,967
0.250 0.035 30,000 75,000 29,167 7,292 11,667 7,224
0.250 0.049 30,000 75,000 48,355 12,089 19,342 9,455
0.250 0.065 30,000 75,000 81,250 20,313 32,500 11,544
0.375 0.020 30,000 75,000 8,955 2,239 3,582 3,029
0.375 0.028 30,000 75,000 13,166 3,292 5,266 4,145
0.375 0.035 30,000 75,000 17,213 4,303 6,885 5,077
0.375 0.049 30,000 75,000 26,534 6,634 10,614 6,816
0.375 0.065 30,000 75,000 39,796 9,949 15,918 8,597
0.500 0.020 30,000 75,000 6,522 1,630 2,609 2,304
0.500 0.028 30,000 75,000 9,459 2,365 3,784 3,172
0.500 0.035 30,000 75,000 12,209 3,052 4,884 3,906
0.500 0.049 30,000 75,000 18,284 4,571 7,313 5,304
0.500 0.065 30,000 75,000 26,351 6,588 10,541 6,786
0.500 0.083 30,000 75,000 37,275 9,319 14,910 8,307
0.625 0.020 30,000 75,000 5,128 1,282 2,051 1,859
0.625 0.028 30,000 75,000 7,381 1,845 2,953 2,568
0.625 0.035 30,000 75,000 9,459 2,365 3,784 3,172
0.625 0.049 30,000 75,000 13,947 3,487 5,579 4,335
0.625 0.065 30,000 75,000 19,697 4,924 7,879 5,591
0.625 0.083 30,000 75,000 27,124 6,781 10,850 6,910
0.625 0.095 30,000 75,000 32,759 8,190 13,103 7,734
0.625 0.109 30,000 75,000 40,172 10,043 16,069 8,639
0.750 0.028 30,000 75,000 6,052 1,513 2,421 2,156
0.750 0.035 30,000 75,000 7,721 1,930 3,088 2,669
0.750 0.049 30,000 75,000 11,273 2,818 4,509 3,664
0.750 0.065 30,000 75,000 15,726 3,931 6,290 4,749
0.750 0.083 30,000 75,000 21,318 5,330 8,527 5,905
0.750 0.095 30,000 75,000 25,446 6,362 10,179 6,637
0.750 0.109 30,000 75,000 30,733 7,683 12,293 7,453
0.750 0.120 30,000 75,000 35,294 8,824 14,118 8,064
0.875 0.020 30,000 75,000 3,593 898 1,437 1,340
0.875 0.028 30,000 75,000 5,128 1,282 2,051 1,859
0.875 0.035 30,000 75,000 6,522 1,630 2,609 2,304
0.049 30,000 75,000 9,459 2,365 3,784 3,172
0.875 0.065 30,000 75,000 13,087 3,272 5,235 4,126
0.875 0.083 30,000 75,000 17,560 4,390 7,024 5,152
0.875 0.095 30,000 75,000 20,803 5,201 8,321 5,807
0.875 0.109 30,000 75,000 24,886 6,221 9,954 6,543
0.875 0.120 30,000 75,000 28,346 7,087 11,339 7,100
1.000 0.028 30,000 75,000 4,449 1,112 1,780 1,633
1.000 0.035 30,000 75,000 5,645 1,411 2,258 2,027
1.000 0.049 30,000 75,000 8,149 2,037 3,259 2,796
1.000 0.065 30,000 75,000 11,207 2,802 4,483 3,647
1.000 0.083 30,000 75,000 14,928 3,732 5,971 4,567
1.000 0.095 30,000 75,000 17,593 4,398 7,037 5,159
1.000 0.109 30,000 75,000 20,908 5,227 8,363 5,827
1.000 0.120 30,000 75,000 23,684 5,921 9,474 6,336
1.000 0.134 30,000 75,000 27,459 6,865 10,984 6,963
1.250 0.035 30,000 75,000 4,449 1,112 1,780 1,633
1.250 0.049 30,000 75,000 6,380 1,595 2,552 2,260

ASME SA 213 Grade TP 304L Reheater Tubes Sizes

ASTM A213 TP 304L Boiler Tubes are supplied according to ANSI/ ASME B36.19.

OUTER DIAMETER (OD) 10.2 – 139.7 mm
(from 26.9 mm manufactured as hot rolled)
WALL THICKNESS (WT) 0.5 – 16.0 mm
(from 2.6 mm manufactured as hot rolled)
Types of supplied length of stainless steel boiler tubes are: (a) random length,
Stainless Steel Boiler Tube (b) fixed length ± 500 mm,
(c) exact length
L < 6 m 0 + 10 mm
L = 6 – 12 m 0 + 15 mm.
L > 12 m + upon agreement

Mechanical Properties of SA213 TP304L Superheater Tube

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

304L Stainless Steel Tubes Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 304L 0.035 max 2 max 1.0 max 0.045 max 0.030 max 18 – 20 8 – 13

Exporter of 304L Stainless Steel Rectangular Tube and SA213 TP304L Perforated Tube, check SS 304L Square Tube weight per foot and wall thickness chart

Equivalent Grade of 304L Stainless Steel Tubing

Grade UNS No Old British Euronorm Swedish SS Japanese JIS GOST
BS En No Name
ASTM A312 TP304L Stainless Steel Pipe S30403 304S31 58E 1.4306 / 1.4307 X5CrNi18-10 2332 SUS 304L 03Х18Н11

Stock List of ASME SA 213 Grade 304L Tube

ASME SA 213 TP 304L Boiler Tube SA 213 TP 304L Stainless Steel Boiler Tubing
SA 213 TP 304L Stainless Steel Reheater Tubes A213 Stainless Steel 304L Boiler Reheater Tubes
WNR 1.4306 Seamless Boiler Tubes A213 Stainless Steel 304L ERW Boiler Tubes
SA 213 TP 304L Stainless Steel Welded Boiler Tubes ASME SA 213 304L Finned Tube Reheater
A213 Stainless Steel 304L Heat Exchanger Tube 304L Stainless Steel Heat Exchanger Tubes
ASME SA 213 304L Heat Exchanger Tubing SS UNS S30403 Shell And Tube Heat Exchangers
304L Stainless Steel Seamless Heat Exchanger Tube A213 TP 304L Stainless Steel Welded Heat Exchanger Tube
ASME SA 213 TP 304L Coiled Tube Heat Exchanger ASTM A213 TP 304L Double Tube Heat Exchanger
SS UNS S30403 Boiler Reheater Tubes SS 304L Coiled Tube Heat Exchanger
A213 TP 304L Finned Tube Reheater ASME SA 213 TP 304L Helical Tube Heat Exchanger
A213 TP 304L Stainless Steel Seamless Boiler Tubes ASTM A213 304L Double Tube Heat Exchanger
SS 304L ERW Boiler Tubes Stainless Steel 304L Industrial Shell And Tube Heat Exchanger
ASTM A213 304L Welded Boiler Tubes SA 213 TP 304L Jacketed Tube Heat Exchanger
Stainless Steel 304L Micro Tube Heat Exchanger A213 TP 304L UNS S30403 Multi Tube Heat Exchanger
SA 213 TP 304L Seamless Heat Exchanger Tube SA 213 Stainless Steel 304L Welded Heat Exchanger Tube
A213 TP 304L UNS S30403 Boiler Reheater Tubes A213 TP 304L ERW Boiler Tubes
SA 213 Stainless Steel 304L Boiler Tubing WNR 1.4306 Heat Exchanger Tubes
ASTM A213 TP 304L Boiler Tube ASME SA 213 TP 304L Heat Exchanger Tubing

ASTM A213 Gr TP304L Seamless Tube

ss 304L sch 40 Seamless Tube

ss 304L sch 40 Seamless Tube

Stainless Steel 304L Seamless Boiler Tubes

Stainless Steel 304L Seamless Boiler Tubes

IBR Certified ASTM A213 Gr TP304L Seamless IBR Tubes

IBR Certified ASTM A213 Gr TP304L Seamless IBR Tubes

SA213 Grade TP304L Welded Tubing

ASTM A213 Grade TP304L Welded Tube

ASTM A213 Grade TP304L Welded Tube

UNS S30403 Boiler Welded Tubes

UNS S30403 Boiler Welded Tubes

IBR Certified ASTM A213 TP304L High Frequency Seam Welded Tubes

IBR Certified ASTM A213 TP304L High Frequency Seam Welded Tubes

ASME SA213 304L Boiler Tube Wall Thickness

THICKNESS RANGE(INCHES) TYPICAL VALUE (INCHES)
0.025 through 0.029 0.028
0.031 through 0.035 0.035
0.038 through 0.042 0.042
0.044 through 0.049 0.049
0.053 through 0.058 0.058
0.060 through 0.065 0.065
0.066 through 0.074 0.072
0.075 through 0.085 0.083
0.087 through 0.097 0.095
0.101 through 0.111 0.109
0.112 through 0.122 0.12
0.126 through 0.136 0.134
0.140 through 0.150 0.148
0.157 through 0.167 0.165
0.175 through 0.185 0.18

Types of ASME SA213 TP304L Tube

ASME SA 213 Gr 304L Seamless Tube

ASME SA 213 Gr 304L Seamless Tube

SA 213 Grade 304L Boiler Tubes

SA 213 Grade 304L Boiler Tubes

SA 213 Gr 304L Welded Tube

SA 213 Gr 304L Welded Tube

IBR Certified SA213 304L Superheater Coil

IBR Certified SA213 304L Superheater Coil

UNS S30403 Heater Tube

UNS S30403 Heater Tube

DIN 1.4306 Seamless Boiler Tube

DIN 1.4306 Seamless Boiler Tube

WNR 1.4306 Furnace Tube

WNR 1.4306 Furnace Tube

SA213 TP304L Heat Exchanger Tubes

SA213 TP304L Heat Exchanger Tubes

ss 304L sch 40 Condenser Tubes

ss 304L sch 40 Condenser Tubes

IBR Approved SS UNS S30403 Studded Tubes

IBR Approved SS UNS S30403 Studded Tubes

A213 TP304L Heater Tube

A213 TP304L Heater Tube

SA213 TP304L Round Tubes

SA213 TP304L Round Tubes

A213 Gr TP304L Seamless Round Tubing

A213 Gr TP304L Seamless Round Tubing

IBR Certified WNR 1.4306 High Temperature Boiler Tube

IBR Certified WNR 1.4306 High Temperature Boiler Tube

ASME SA213 304L Material

ASME SA213 304L Material

SS UNS S30403 Hot Finished Tube

SS UNS S30403 Hot Finished Tube

SS 304L Water Tube Steam Boiler

SS 304L Water Tube Steam Boiler

SA 213 Grade 304L Steam Tube Boiler

SA 213 Grade 304L Steam Tube Boiler

ss 304L sch 40 Seamless Boiler Tubes

ss 304L sch 40 Seamless Boiler Tubes

Stainless Steel 304L Economiser Tubes

Stainless Steel 304L Economiser Tubes

ASTM A213 Gr TP304L Bent Boiler Tube

ASTM A213 Gr TP304L Bent Boiler Tube

ASTM A213 Grade TP304L U Tube Bundle Heat Exchanger

ASTM A213 Grade TP304L U Tube Bundle Heat Exchanger

SA213 304L Superheater Tubes

SA213 304L Superheater Tubes

DIN 1.4306 Cold Drawn Tube

DIN 1.4306 Cold Drawn Tube

A213 Grade TP304L IBR Tubes

A213 Grade TP304L IBR Tubes

IBR Approved SS 304L Seamless Tubing

IBR Approved SS 304L Seamless Tubing

SA 213 Grade 304L High Pressure Tube

SA 213 Grade 304L High Pressure Tube

ASME SA 213 Grade 304L Tube Coating Types

Ceramic Coating 304L SS Boiler Tube

Ceramic Coating 304L SS Boiler Tube

304L Stainless Steel Epoxy Coated Tubing

304L Stainless Steel Epoxy Coated Tubing

Thermal Spray Coating IBR Certified ASTM A213 Gr TP304L Boiler Tube

Thermal Spray Coating IBR Certified ASTM A213 Gr TP304L Boiler Tube

IBR Certified UNS S304L03 Tube Ends

Coupled Ends SA 213 Gr 304L Tube

Coupled Ends SA 213 Gr 304L Tube

Threaded End ASME SA 213 Grade 304L Tube

Threaded End ASME SA 213 Grade 304L Tube

Plain-End IBR Certified ASME SA 213 Gr 304L Tube

Plain-End IBR Certified ASME SA 213 Gr 304L Tube

Manufacturer of Stainless Steel 304L Boiler Tubes and SA 213 TP 304L Round Tube from 1/2” to 8” NB.

Tolerances of 304L SS Water Tube Boiler

NPS OD Tolerance
+
inch mm inch mm
1/8~1 1 /2 1/64(0.015) 0.4 1/32(0.031) 0.8
> 1 1 /2~4 1/32(0.031) 0.8 1/32(0.031) 0.8
> 4~8 1/16(0.062) 1.6 1/32(0.031) 0.8
> 8~18 3/32(0.093) 2.4 1/32(0.031) 0.8
> 18~26 1/8(0.125) 3.2 1/32(0.031) 0.8
> 26~34 5/32(0.156) 4 1/32(0.031) 0.8
> 34~48 3/16(0.187) 4.8 1/32(0.031) 0.8

Manufacturing Types of 304L SS Semless Tube

ASTM A213 Grade TP304L Seamless Tube

ASTM A213 Grade TP304L Seamless Tube

A213 Gr TP304L Welded Tubes

A213 Gr TP304L Welded Tubes

A213 Grade TP304L Square Tube

A213 Grade TP304L Square Tube

A213 TP304L Rectangular Tube

A213 TP304L Rectangular Tube

ASME SA 213 Grade 304L U-Tubes

ASME SA 213 Grade 304L U-Tubes

ASME SA213 304L Finned Tubes

ASME SA213 304L Finned Tubes

WNR 1.4306 Tube Application

  • Oil & Gas Industries
  • Power Generation Industries
  • Petrochemical Industries
  • Fertilizers Industries
  • Sugar Industries
  • Chemical Industries

Stainless Steel 304L Tube Different manufacturing processes

  • ss 304L sch 40 Hot Finished Seamless (HFS)
  • WNR 1.4306 Electric Resistance Welding (ERW)
  • ASTM A213 TP304L Cold Drawn or Finished Seamless (CDS)
  • ASME SA 213 Grade 304L High Frequency Induction Welding (HFIW)
  • 304L Stainless Steel Hand-Welding or Manual Arc Welding (MAW) Tubes
  • UNS S30403 Hot Finished Welding (HFW) Tubing
  • DIN 1.4306 Cold Drawn Electric Resistance Welding (CEW) Tube
  • IBR Approved SA 213 Gr 304L Electric Fusion Welding (EFW) Tube
  • A213 TP304L Sub-merged Arc Welding (SAW) Tubes
  • IBR Certified ASME SA 213 Gr 304L Oxy Acetylene Welding (OAW) Tubing
ASTM A213 Grade TP304L Superheater Tubes

Test Requirements of Stainless Steel 304L Round Tube

  • SS 304L High Pressure Tubes Eddy Current Test
  • ASTM A213 Grade TP304L Condenser Tubes Ultrasonic Testing
  • Hydrostatic Tests for 304L Stainless Steel Tube Boiler
  • Metalography Test performed for ASME SA 213 Grade 304L Steam Tubes Boiler
  • SA213 304L Superheater Tubes MP / DP / RF ECT Testing
  • BHN Hardness & Rockwell Testers
  • Visual Inspection, TPP and CVN Impact Testing
SA 213 Gr 304L Steam Tube Boiler

Marking of A213 Gr TP304L Tube

Marking on SA 213 Grade 304L Tube

  • SA 213 Grade 304L Tubing Manufacturer’s name
  • Monogram marking
  • SA213 304L Grade and type
  • Heat treatment
  • Impact test temperature
  • Manufacturing process
  • Weight
  • End finish of UNS S30403 Tubes
  • ASME SA 213 Grade 304L material Heat treatment
  • Type of Stainless Steel 304L Tube thread
  • A213 Grade TP304L Tubing Grade and type
  • Impact test temperature
ASME SA213 Gr 304L Large Diameter Tube
Looking for 304L Stainless Steel Tubing manufacturers? Buy AISI 304L Fin Tube and UNS S30403 ASTM A213 TP304L Hot Finished Tube in exact size and save your cost

Heat Resistance of 304L Stainless Steel Tubing

Heat Resistance upto 925 °C

ASTM A213 Gr TP304L Heat Exchanger Tube Test

Only specific testing.
Testing comparison DIN 17175 and EN 10216 – 2:

EN – testing category
DIN – quality class
TC1
I
TC2
III

Schedule Size of SS 304L Pipes for Heat Exchanger and Boiler

Nominal Bore Outside Diameter Wall Thickness Schedule Class Weight (kg)
Inch. Inch MM MM - - Per Meter Per Foot
1/8 0.405 10.30
10.30
1.7
2.4
40
80
Std
xs
0.36
0.47
0.11
0.14
1/4 0.54 13.70
13.70
2.2
3.0
40
80
Std
xs
0.62
0.79
0.19
0.24
3/8 0.675 17.10
17.10
2.3
3.2
40
80
Std
xs
0.84
1.10
0.26
0.33
1/2 0.84 21.30
21.30
21.30
21.30
2.87
3.73
4.78
7.50
40
80
160
-
Std
xs
-
xxs
1.69
2.20
2.90
3.64
0.51
0.67
0.88
1.11
1 1.315 33.40
33.40
33.40
33.40
3.38
4.55
6.35
9.10
40
80
160
-
Std
xs
-
xxs
2.50
3.24
4.24
5.45
0.76
0.98
1.29
1.66
1.1/4 1.66 42.20
42.20
42.20
42.20
3.56
4.85
6.35
9.70
40
80
160
-
Std
xs
-
xxs
3.39
4.47
5.61
7.77
1.03
1.36
1.71
2.36
1.1/2 1.9 48.30
48.30
48.30
48.30
3.68
5.08
7.14
10.20
40
80
160
-
Std
xs
-
xxs
4.05
5.41
7.25
9.58
1.23
1.65
2.20
2.91
2 2.375 60.30
60.30
60.30
60.30
3.91
5.54
8.74
11.10
40
80
160
-
Std
xs
-
xxs
5.44
7.48
11.11
13.47
1.65
2.28
3.38
4.10
2.1/2 2.875 73.00
73.00
73.00
73.00
5.16
7.01
9.53
14.00
40
80
160
-
Std
xs
-
xxs
8.63
11.41
14.92
20.37
2.63
3.47
4.54
6.20
3 3.5 88.90
88.90
88.90
88.90
88.90
4.80
5.49
7.62
11.13
15.20
-
40
80
160
-
-
Std
xs
-
xxs
9.95
11.29
15.27
21.35
27.63
3.03
3.43
4.65
6.49
8.40
3.1/2 4 101.60
101.60
101.60
4.80
5.74
8.08
-
40
80
-
Std
xs
11.46
13.57
18.63
3.48
4.13
5.67
4 4.5 114.30
114.30
4.00
4.80
-
-
-
-
10.88
12.96
3.31
3.94
